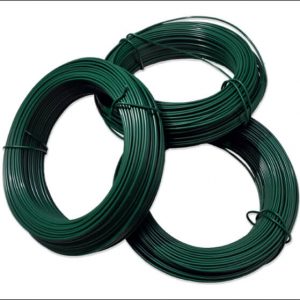

PVC Coated steel wire
| Core wire diameter | Diameter after coated |
| 0.8mm | 1.2mm |
| 1.0mm | 1.4mm |
| 1.4mm | 2.0mm |
| 2.0mm | 3.0mm |
| 2.5mm | 3.5mm |
| Color: Dark green, blue, yellow, and so on | |
| Packing: 1. lined with P.V.C strips and wrapped with PVC film or hessian cloth 2. small coils of 50m, 100m, 150m, 200m, and so on |
|
Wire diameter range: 0.3mm – 4mm.
Wire gauge: 8-20 gauge.
Tensile strength: 300-500 Mpa
Elongation: >12%.
PVC coated layer: 0.4mm – 1.5mm.(+0.05mm/-0.05mm Max).
Galvanised iron wire with pvc / pe coating layer has much longer service life compared with common galvanized wire.
Electro galvanized / Black Annealed Steel Wire
| Name | Electro galvanized iron wire |
| Material | Low carbon mild steel Q195 |
| Wire gauge | 0.6mm-4.0mm |
| Tensile strength | 340-500 Mpa |
| Elongation | >12% |
| Zinc coating | 8-12g/m2 |
| Packing | In 25kgs/coil.
In small coils of 50m, 100m, 150m, 200m Inside with plastic film, outside woven/hessian cloth or customized |
